VP3
tires

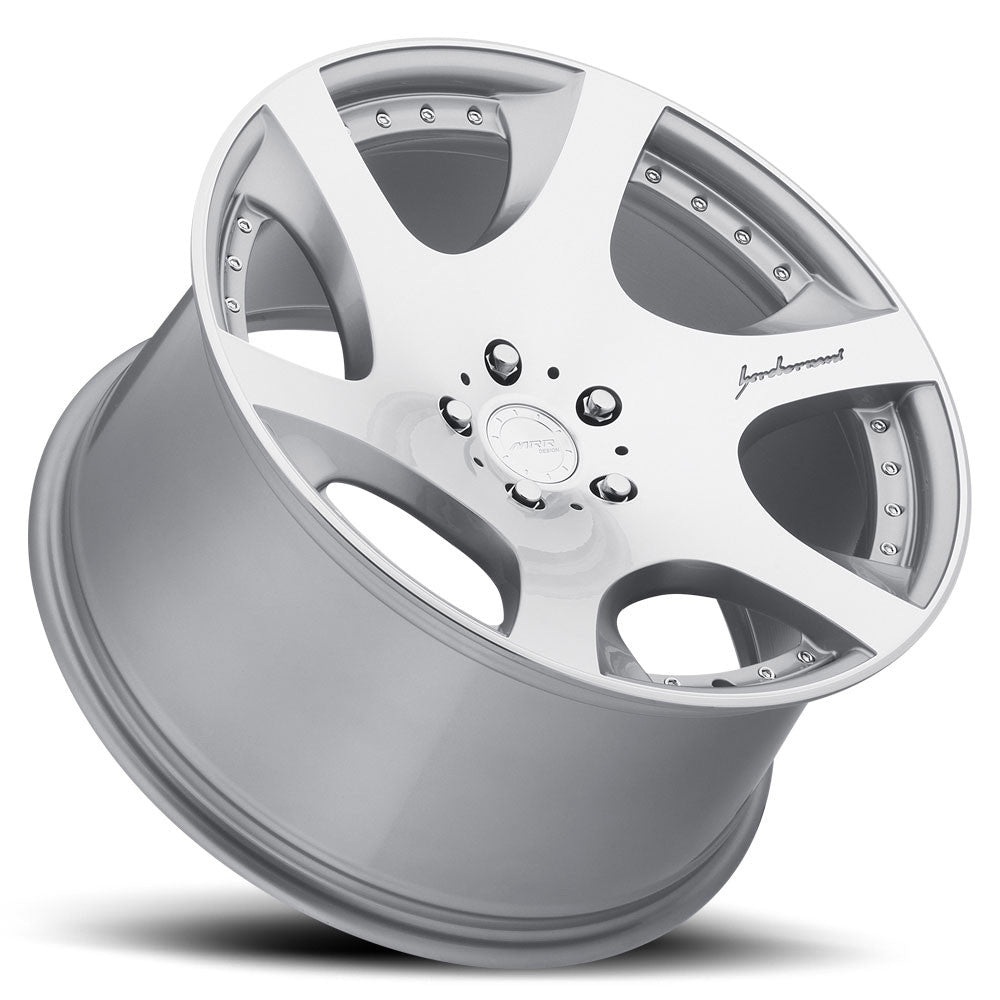

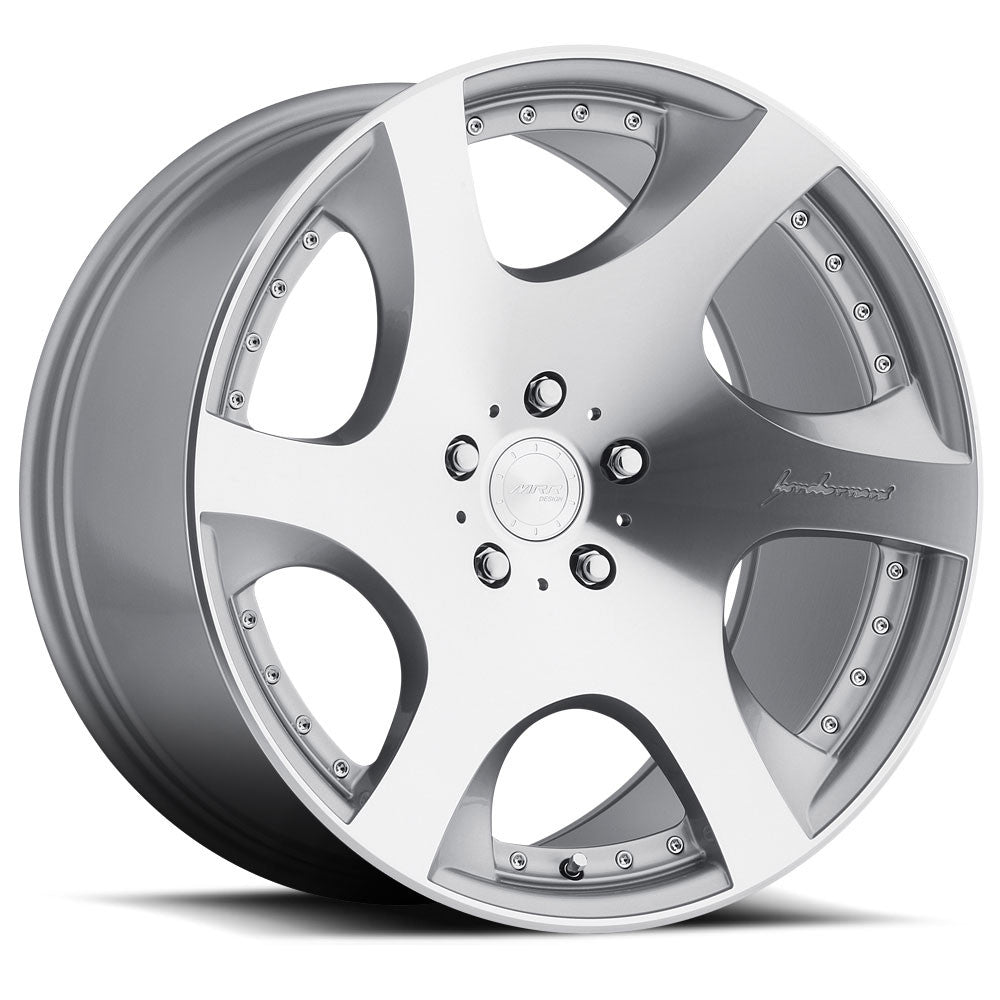

The MRR VP3 is a one piece cast aluminum VIP style wheel by MRR Wheels with a concave 5 spoke face and 23 decorative rivets. It comes in Silver Machine Face, in 19x9.5, 20x9 and 20x10.5, drilled for 5x108, 5x112, 5x114.3 and 5x120 bolt patterns.
The 20 inch sizes make a staggered pair: 20x9 in front with 20x10.5 in the rear. The 19x9.5 comes in one width for a square setup.
Specifications
- Brand: MRR Wheels
- Model: VP3
- Construction: One piece cast aluminum (monoblock)
- Design: Concave 5 spoke, VIP style, 23 decorative rivets
- Finish: Silver Machine Face
- Sizes: 19x9.5, 20x9, 20x10.5
- Bolt patterns: 5x108, 5x112, 5x114.3, 5x120
- Offsets: ET20 to ET45 depending on size and bolt pattern
- Center bore: 66.6 mm (5x112), 72.6 mm (5x120), 73.1 mm (5x108 and 5x114.3)
- Load rating: 690 kg (1,521 lbs) per wheel on 19x9.5, 815 kg (1,797 lbs) per wheel on 20 inch
- Weight: 31.9 to 38.2 lbs depending on size
- Center cap: 64.6 mm cap with 64.6 mm logo (shop caps)
- Made in: Taiwan
- Warranty: One year against defects in materials and workmanship
Sizes, weight and load rating
| Size | Weight (approx.) | Load rating |
|---|---|---|
| 19x9.5 | 31.9 lbs | 690 kg (1,521 lbs) |
| 20x9 | 38.2 lbs | 815 kg (1,797 lbs) |
| 20x10.5 | 36.1 lbs | 815 kg (1,797 lbs) |
Offsets by bolt pattern
| Size | 5x108 (CB 73.1) | 5x112 (CB 66.6) | 5x114.3 (CB 73.1) | 5x120 (CB 72.6) |
|---|---|---|---|---|
| 19x9.5 | ET40 | ET25, ET35, ET40, ET45 | ET20, ET40 | ET20, ET40 |
| 20x9 | ET38 | ET25, ET38, ET45 | ET20, ET38 | ET20, ET38 |
| 20x10.5 | ET40 | ET25, ET35, ET40, ET45 | ET20, ET40 | ET20, ET40 |
Backspacing by offset
| Size | Offset | Backspacing |
|---|---|---|
| 19x9.5 | ET20 | 6.04 in (153.4 mm) |
| 19x9.5 | ET25 | 6.23 in (158.4 mm) |
| 19x9.5 | ET35 | 6.63 in (168.4 mm) |
| 19x9.5 | ET40 | 6.82 in (173.4 mm) |
| 19x9.5 | ET45 | 7.02 in (178.4 mm) |
| 20x9 | ET20 | 5.79 in (147.0 mm) |
| 20x9 | ET25 | 5.98 in (152.0 mm) |
| 20x9 | ET38 | 6.50 in (165.0 mm) |
| 20x9 | ET45 | 6.77 in (172.0 mm) |
| 20x10.5 | ET20 | 6.54 in (166.1 mm) |
| 20x10.5 | ET25 | 6.73 in (171.1 mm) |
| 20x10.5 | ET35 | 7.13 in (181.1 mm) |
| 20x10.5 | ET40 | 7.32 in (186.1 mm) |
| 20x10.5 | ET45 | 7.52 in (191.1 mm) |
Video
FAQ
Is the price per wheel or per set?
The price shown is per wheel. Choose quantity 4 for a full set, or 2 of each width for a staggered set.
Is the VP3 forged or flow formed?
No. The VP3 is a one piece cast aluminum wheel. For flow forged MRR wheels, see the GT1 and HR3. For fully forged wheels, see the MRR Forged Series.
What does PCD | ET | CB mean?
PCD is the bolt pattern, ET is the offset in millimeters and CB is the center bore in millimeters. For example, 5x114.3 | 35 | 73.1 means a 5x114.3 bolt pattern, +35 mm offset and 73.1 mm center bore.
Is the VP3 a three piece wheel?
No. The 23 rivets are decorative. The VP3 is a one piece wheel, so there is nothing to bolt together or reseal.
Do I need hub centric rings?
If your vehicle hub is smaller than the wheel center bore, use hub centric rings sized to your hub. For example, a 5x114.3 Lexus or Toyota with a 60.1 mm hub uses 73.1 to 60.1 rings. See our hub rings and installation kits.
Can the VP3 be drilled for a different bolt pattern or offset?
Yes. VP3 blanks can be drilled for 5 lug patterns from 5x100 to 5x120.7, with offsets from ET15 to ET45. Contact us for a custom drill.
Will the VP3 fit my car?
Fitment depends on bolt pattern, offset, hub size and brake clearance. Contact us with your year, make and model and we will confirm the right size and offset.
How fast does it ship?
In stock VP3 wheels are drilled and shipped within 2 business days. Shipping is free on wheels to the contiguous 48 states.
Which center cap does the VP3 use?
A 64.6 mm center cap with a 64.6 mm logo. Shop VP3 caps.
What is the warranty?
One year from the date of purchase against defects in materials and workmanship. Please inspect your wheels before mounting tires. Full terms are on our warranty page.
